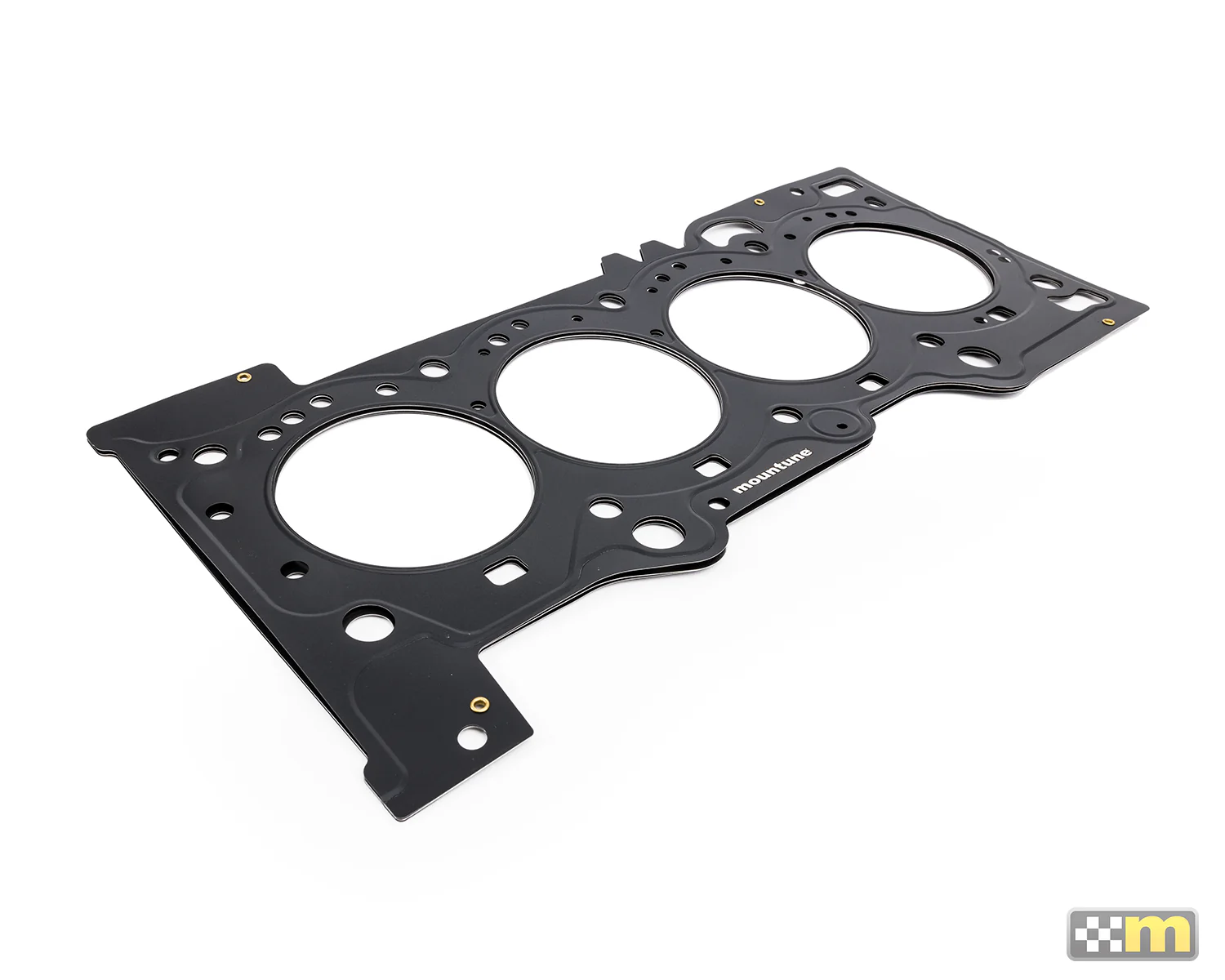

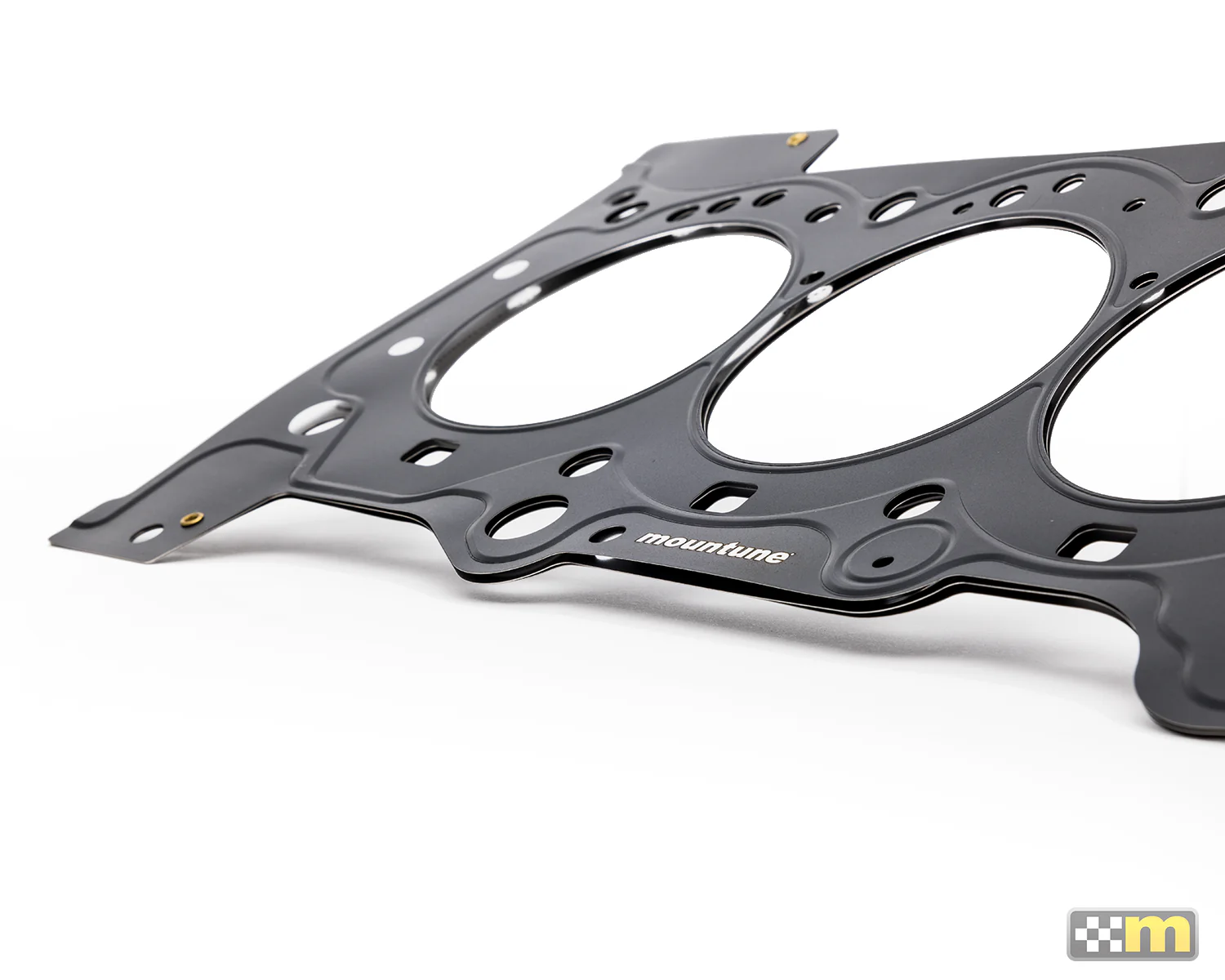

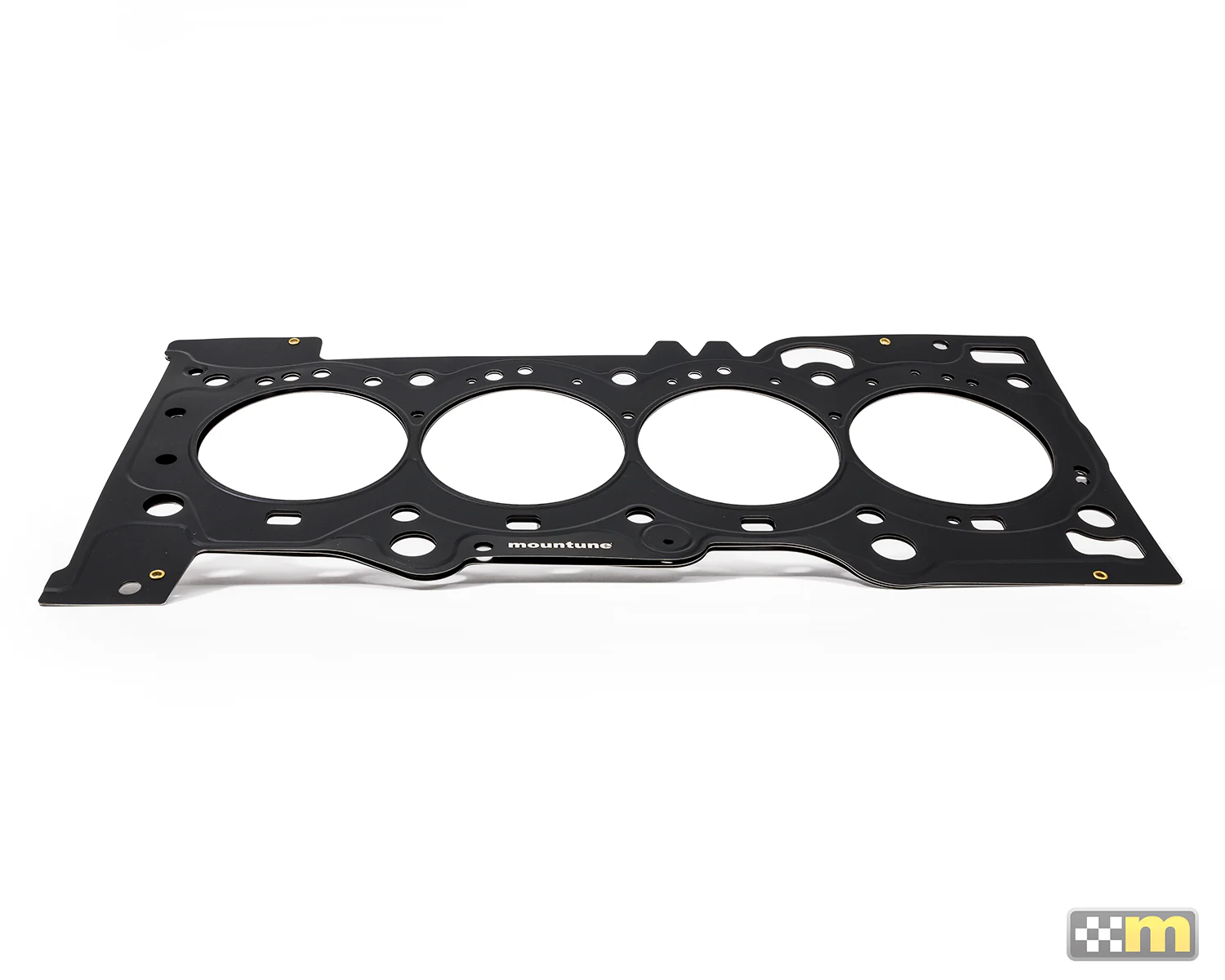

mountune ICR head gasket [Mk3 Focus RS]

mountune ICR (Integrated Compression Ring) High Performance Head Gaskets are engineered to seal-in power under the most demanding and high boost conditions.

Relying on our vast motorsport experience with Touring Cars, Rally and Rallycross engines, our development team designed a cylinder sealing solution that would stand up to extreme boost and cylinder pressure, yet be functional for daily use. Each gasket includes a welded ICR layer with unique features to ensure maximum reliable engine performance.

Engineered from SUS 301 chromium-nickel stainless steel with welded Integrated Compression Ring layer, each application features superior sealing compared to conventional multi-layer steel gaskets. All mountune ICR Head Gaskets are manufactured from pre-coated die cut stainless steel resulting in uniform coating distribution and consistent shape.

Specification:

Bore: 90.00mm
Thickness: 0.85mm

Features:

• Individual die cut layers of stainless steel with superior consistency compared to laser cut gaskets
• Pre-coated stainless steel with a 0.27 micron layer of HR-180/FKM rubber ensures consistent distribution of coating with no high or low areas
• Manufacturing dimensional tolerance of +/- 0.001”
• Die cut manufacturing process ensures smooth edges, unlike laser cut gaskets

Applications:

• Mk3 Focus RS
• 2015-2020 Mustang 2.3 EcoBoost
